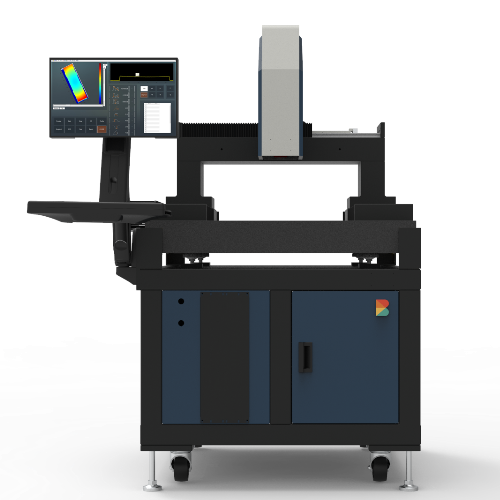

Optical non-contact surface 3D profile measuring instrument

Model: AL-3AT2

Booth No: J1008

Characteristic

Advantages and features of 3D measurement equipment
https://www.buenooptics.com/en/product/3at

Structured Light Projection、Line Laser Projection、3D imaging measurement、Data Measurement、Error analysis compared with CAD

➤ One-touch instant measurement function
Quickly obtain 3D data of workpiece surface within seconds
Non-contact measurement does not damage the product and does not increase costs

➤ Meet various measurement needs
Exclusive optical architecture and core algorithm
Mounted on a high-precision optical ruler displacement platform
Applicable to measuring objects in a wide range

➤ Big data capabilities
After scanning, you can select the measurement section to measure the height difference, contact circle and other numerical values.
The measurement results are digitized to provide customers with a more complete database collection

➤ Customized service
Can be equipped with a four-eye structured light source to obtain complete multi-directional scanning information instead of using 3D infill to obtain virtual information
Customizable measurement items
