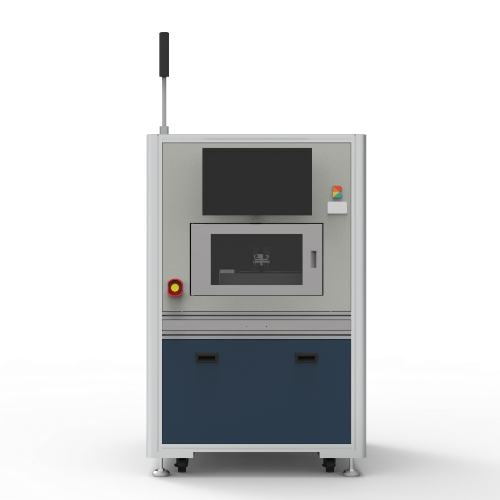

Intelligent automatic wafer thickness dual-axis measurement equipment

Model: SE-5AT3

Booth No: J1008

Characteristic

SE-5AT Semiconductor Series
https://www.buenooptics.com/en/show-1276192
Multifunctional wafer measuring instrument, using upper and lower high-precision white light concentric focus sensors to measure wafer thickness, curvature, bow, etc.

→ Thickness monitoring
Targeting the thickness monitoring requirements of semiconductor wafer grinding, thinning process, CVD deposition, epitaxy and film growth process.

→ Precise measurement
The wafer bow, curvature and thickness uniformity generated during the process are accurately measured and analyzed; a non-contact dual probe sensor is used in conjunction with a high-precision displacement platform to perform full-plane scanning.

→ Barcode Loading Work Order
Work orders can be provided in the form of barcodes, which can be automatically read according to the customer's format and automatically load measurement parameters for measurement.

→ Measurement function
The measurement points can be customized. The software has built-in point paths, including 5 points, 9 points, 37 points and customized points, which can achieve multi-point measurement information; the system can also read the wafer's WAFER ID information,3D color image analysis.
