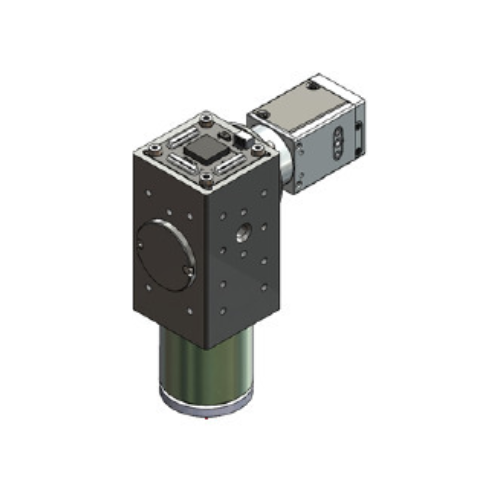

WiseScope, Extended Depth-of-Field Camera for AOI (Automated Optical Inspection)

Booth No: J1010

Characteristic

A Game-Changing Product for Depth Composition Without a Z-Axis Motor
■ Achieves up to 120x extended depth of field (DoF) without the need for Z-axis movement
■ Supports microscope objectives, low-magnification FA lenses, and telecentric lenses
■ Compatible with area scan cameras up to 25MP or 13K TDI line scan cameras
■ Allows flexible focus point selection or auto-focus by region, expanding inspection coverage

Proprietary MALS™ Technology: Real-Time Focus Adjustment
A zoom lens system made up of thousands of 100×100µm elements, each capable of independent 3-axis motion, instantly generates full DoF images.
Based on 2D image information, it can reconstruct 3D images in real time and output measurement data.

World’s Only TDI Line Scan with Depth Composition
When paired with a TDI camera, MALS™ enables depth-composed images from multiple regions during the time it takes to scan just 256 pixels in width.
Concept: For each target area, multiple focus-layer images are composed into one high-resolution result
Only one scan is required to capture multiple deep-focused images from different regions

Semi-Custom System Easily Integrated into Existing AOI Solutions
Compatible with both large-sensor area scan and TDI line scan cameras, as well as a variety of lenses and optional coaxial or ring lighting to fit diverse inspection needs.

Learn more or request a demo at the LINX Taiwan website: 👉 https://bit.ly/4j5KA96
