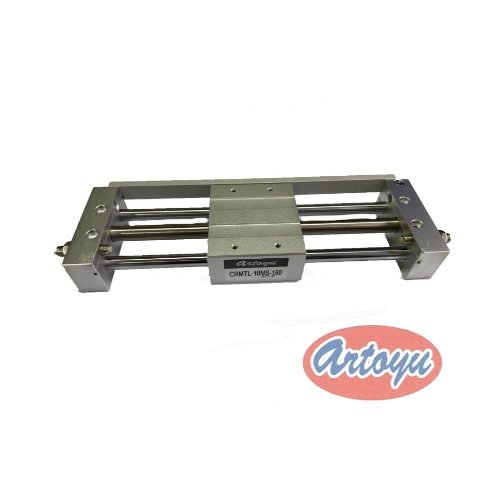

Guide Rod Type Rodless Cylinder



Model: 導桿型無桿氣缸CRMT系列

Category: Key Components

Exhibitor: GOOD TER HSIN ENTERPRISE CORP.

Booth No: N/A





Characteristic



●Multi-bore and multi-stroke optional 16, 20, 25, 32, 40 and other cylinder diameters are optional, and each cylinder diameter corresponds to a
variety of specification strokes, which is convenient for selection
●There is no mechanical connection between the piston and the slider, and the sealing performance is excellent
●There are fixed buffer devices at both ends of the cylinder, the reversing action is smooth without impact, and mechanical damage is avoided at the
same time. Optional external hydraulic buffer, better buffering effect.
●High guiding precision, capable of bearing certain lateral or eccentric loads
The cylinder can be fixed on the top surface and the bottom surface, and the installation space is less than that of ordinary cylinders, and the
maximum stroke is larger than that of ordinary cylinders
The piston chamber is separated from the slider to prevent dust and dirt from entering the system and prolong the service life of the cylinder
