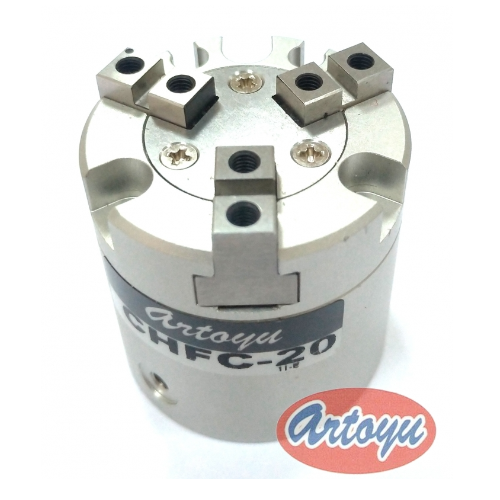

Pneumatic finger (parallel opening and closing type)

Model: 氣動手指CHFC系列

Exhibitor: GOOD TER HSIN ENTERPRISE CORP.

Booth No: I924

Characteristic

●16, 20, 25, 32, 40, 50, 63 bore sizes are optional
●Two-jaw (I-type), three-jaw (Y-type), four-jaw (X-type) jaw types are optional
●The internal wedge structure is adopted, which can obtain a large clamping force
●The rear screw hole installation and the front through hole installation are optional
●The front end of the piston is equipped with an anti-collision pad design, which effectively reduces the metal impact sound when the jaws are released
●There are positioning pin holes at the bottom of the body to improve the fixing accuracy and improve the positioning consistency of repeated disassembly and assembly
●The body has a circular sensor installation groove, matching sensor model HCS107R/HLAG93, no need to install accessories, convenient and flexible
