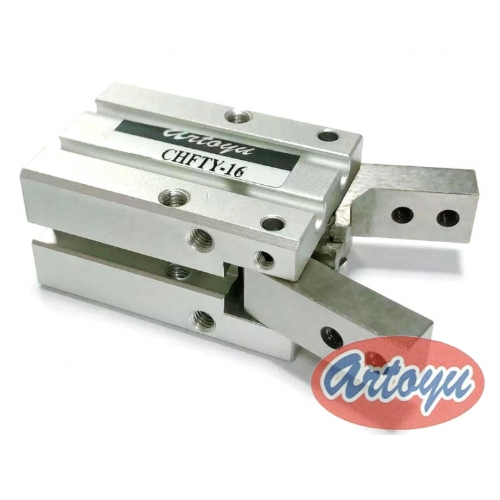

Pneumatic finger CHFY series



Model: 氣動手指CHFY系列

Category: Key Components

Exhibitor: GOOD TER HSIN ENTERPRISE CORP.

Booth No: N/A





Characteristic



●6, 10, 16, 20, 25, 32 bores are optional, double-action type (HFY), single-action normally open type (HFTY) are optional
●Reasonable clamping angle, wide range of practical use
●Single piston structure, large clamping torque
●With variable throttle valve, it is convenient to adjust the opening and closing speed of the gripper
●Mounting holes are attached to the side and bottom for easy installation and use under different conditions
●There are square sensor switch installation grooves on this side and the opposite side, matching sensor switch model:
HCS106R/HLAG33, no need to install accessories, convenient and flexible
●The main body is equipped with a fixed datum core hole, which improves the fixing accuracy and improves the positioning
consistency of repeated disassembly and assembly.
●There are circular sensor switch installation grooves on this side and the opposite side, matching sensor switch model:
HCS107R/HLAG93, no need to install accessories, convenient and flexible
