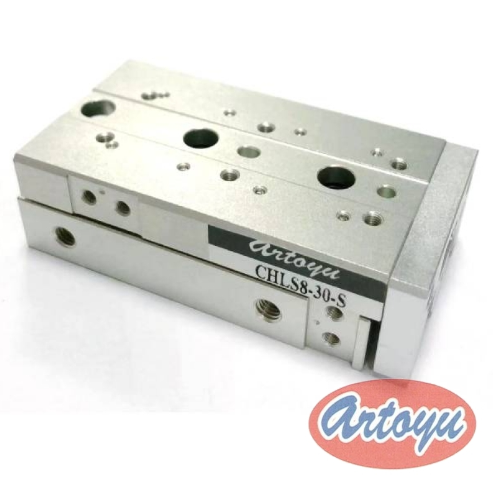

Double axis type precision slide cylinder (roller type)

Model: 滑臺氣缸CHLS系列

Exhibitor: GOOD TER HSIN ENTERPRISE CORP.

Booth No: I924

Characteristic

●Provide a variety of external stop combination types, which is convenient for selection under different working conditions
●The piston rod is designed with floating joint and does not bear additional load moment
●The top surface and front side of the slide table are equipped with mounting screw holes for fixing fixtures, and the top surface of the slider has its own mounting positioning pin holes
●Cross-roller guide, with high strength, high precision, high load characteristics, excellent straightness and non-rotation accuracy
●A mounting through hole is reserved above the slider, which is convenient for fixing the body from above. The bottom surface and end surface of the body are provided with mounting screw holes, and the bottom surface of the body has its own installation positioning pin hole. The fixed cylinder can be installed from 3 directions, which is easy to use.
●Double piston rod design, can obtain double output
●6, 8, 12, 16, 20, 25 and other cylinder diameters are optional; each cylinder diameter corresponds to various specifications and strokes, which is convenient for selection
