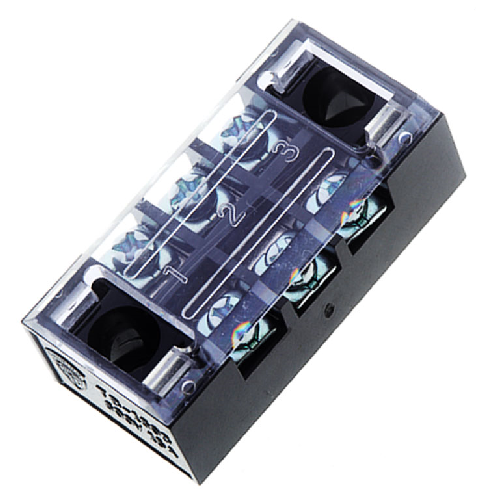

TB-2503L 600V 25A 3 Pole Panel Mounted Fixed Terminal Block
Model: TB-2503L
Category: Industrial Automation
Exhibitor: SHINING E&E INDUSTRIAL CO., LTD.
Booth No: N/A
Characteristic
TB-2503L 600V 25A 3 Pole Panel Mounted Fixed Terminal Block
The terminal block does not need to be mounted on a 35mm (width) DIN rail. It can be installed on panel through screws.
The wiring method is by Bare Wiring. It is also okay if you want to wire through a Ring or Spade Terminal.
To reduce the risk of electric shock when wiring, the terminal block comes with a Protective Cover.
Electrical Specifications: 600V, 25A, 3 Pole
Dimension: 56.0 x 30.0 x 19.5mm (L x W x H)
Wire Size: 10.0mm2 (AWG 6)
Screw Size: M4
Housing/ Insulated Material: PC
Flame Retarded Grade: UL94-V2
RoHS compliant.
