TA-060 600V 60A 35mm (Width) Din Rail Mounted Assembly Type Terminal Block

Model: TA-060

Exhibitor: SHINING E&E INDUSTRIAL CO., LTD.

Booth No: N/A

Characteristic

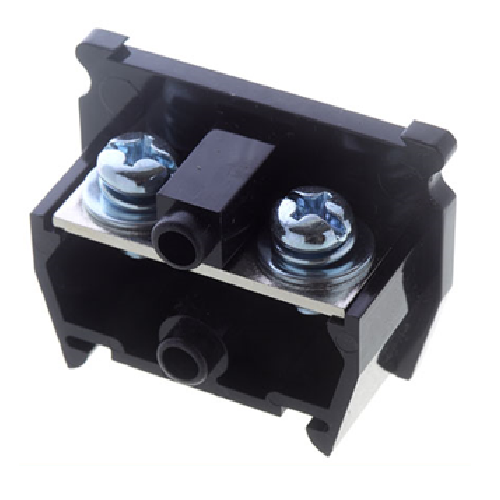

TA-060 600V 60A 35mm (Width) Din Rail Mounted Assembly Type Terminal Block

The terminal block is 35mm (width) DIN rail mounted. It is also be installed on panel through screws.
The wiring method is by Bare Wiring. It is also okay if you want to wire through a Ring or Spade Terminal.
To reduce the risk of electric shock when wiring, you can purchase the Protective Cover or Transparent Cover for the Terminal Block if you want.
Will attach the Paper Marker Strip (Blank) for writing/ labeling.

Electrical Specifications: 600V, 60A, Any Pole
Dimension: 20.5 x P + 34.0 (L) x 50.0 (W) x 38.0 (H) mm
Wire Size: 16.0mm2 (AWG 6)
Screw Size: M6
Housing/ Insulated Material: PC
Flame Retarded Grade: UL94-V2
RoHS compliant.
