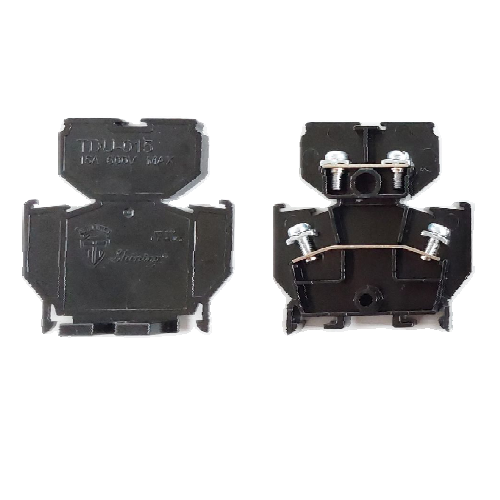

TDU-015 600V 15A Din Rail Mounted Assembly Type Double Layers Terminal Block

Model: TDU-015

Exhibitor: SHINING E&E INDUSTRIAL CO., LTD.

Booth No: N/A

Characteristic

TDU-015 600V 15A Din Rail Mounted Assembly Type Double Layers Terminal Block

The terminal block is 35mm (width) DIN rail mounted. It is also be installed on a 25mm (width) DIN rail.
The wiring method is by Bare Wiring. It is also okay if you want to wire through a Ring or Spade Terminal.
To reduce the risk of electric shock when wiring, you can purchase the Protective Cover for the Terminal Block if you want.
Will attach the Paper Marker Strip (Blank) for writing/ labeling.
Double Layer. Save Space.

Electrical Specifications: 600V, 15A, Any Pole
Dimension: 8.5 x P + 31.0 (L) x 48.0 (W) x 51.0 (H) mm
Wire Size: 0.32~2.08mm2 (AWG 22~14)
Screw Size: M3
Housing/ Insulated Material: Thermoplastic
Flame Retarded Grade: UL94-V0
UL/cUL approved.
