TC-6304A 600V 30A 4 Pole Ceramic Terminal Block
Model: TC-6304A
Category: Industrial Automation
Exhibitor: SHINING E&E INDUSTRIAL CO., LTD.
Booth No: N/A
Characteristic

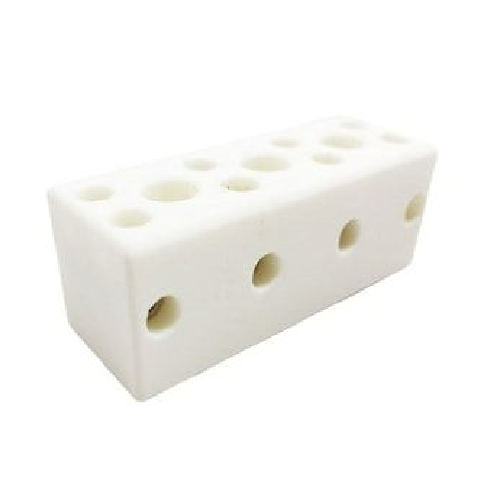

TC-6304A 600V 30A 4 Pole Ceramic Terminal Block
The terminal block is mounted on panel through screws.
The wiring method is by Bare Wiring.
The material is Ceramic. It is for High-Temperature applications.
Electrical Specifications: 600V, 30A, 4 Pole
Dimension: 85.0 x 38.0 x 22.8mm (L x W x H)
Wire Size: 3.31~5.26mm2 (AWG 12-10)
Screw Size: M4
Housing/ Insulated Material: Ceramic
UL/cUL approved.
